Sporto
FIND YOUR FAVORITE
Road bikes with aluminum and carbon frames of craftmanship quality, made in Italy, with the attention to detail on every production stage, using the most advanced and innovative technologies and to allow the maximum of custom options.
公路自行車採用義大利製造的鋁材質車架和碳纖維車架，在每個生產階段都相當注重細節，以最先進和創新的技術，提供客製化的自行車產品。ALAN BIKE品牌網站: https://alanbike.it
請告訴我們需求的車款、規格、偏好的顏色等訊息，或由我們來協助客製您的愛車
RACE MASTER
Handmade carbon Race Road Frame.
手工碳纖維跑車
- HANDMADE carbon fiber frame high modulus 60T/3k external layer
- Frame weight 990 g - Bottom bracket BB86 (86,5×41)
- Internal cables routing for shifting device and brake Suitable for electronic and mechanical devices
- Seat tube ID 27,2 mm
- Monocoque carbon fork weight 350 g
- Tapered headtube 1”1/8 top – 1”1/2 bottom
- Integrated Headset included
- Size: XS / S / M / L / XL / XXL

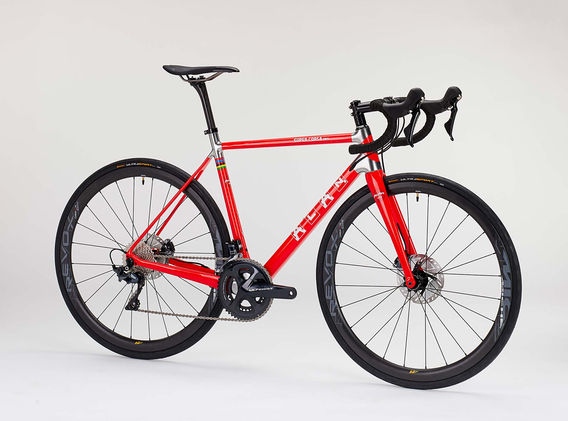

SUPER CORSA DBS
CARBON ROAD DISC BRAKE FRAME IN ALAN STYLE
手工碟煞版碳纖維跑車 - ALAN風格
- Monocoque high mod carbon fiber frame- weight 1.100 g
- Sizes: 45-48-50-52-54-56-58-60

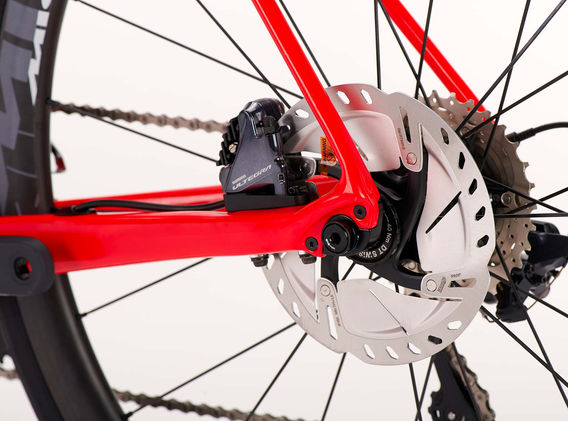

- flat mounts disc brake
- rear t/axle 12x142mm – front t/axle 12x100mm
- Bottom bracket BB86 (86,5×41)
- Seat tube ID 27,2 mm
- Monocoque carbon fork weight 400 g
- Tapered headtube 1”1/8 top – 1”1/2 bottom
- Integrated Headset included
- Colors: S1 CARBON – S2 RED – S3 BLUE – S4 RACING RED
MITO
CARBON “ROAD CLASSIC” FRAME, MADE IN ITALY
手工經典版碳纖維跑車
- Handmade high mod carbon fiber frame- weight 1.100 g
- Sizes: road semi-sloping S-M-L-XL-XXL, standard or custom size on request
- Bottom bracket BSA threaded
- Seat tube ID 27,2 mm
- Full carbon fork weight 370 g
- Tapered headtube 1”1/8 top – 1”1/8 bottom-Integrated Headset included
- Colors: LN1C CARBON
Super Pista Scandium
TRACK/ROAD CRITERIUM MODEL HANDMADE SCANDIUM
手工單速跑車
- Handmade Scandium 7000 aluminium frame
- Weight 1.350 g
- Sizes: XS-S-M-L-XL-XXL or custom size on request
- Bottom bracket BSA threaded
- Seat tube ID 27,2 mm
- Monococque carbon fork weight 390 g
- Tapered headtube 1”1/8 top – 1”1/2 bottom
- Integrated Headset included
- Colors: SC1 GREY – SC2 ANTHRACITE
Super Corsa Scandium
HANDMADE ALUMINIUM SCANDIUM ROAD FRAME
手工鋁合金跑車
- Handmade Scandium 7000 aluminium frame- weight 1.350 g
- Sizes: Race 50-52-54-56-58-60- semi-sloping S-M-L-XL-XXL- standard or custom size on request
- Bottom bracket BSA threaded
- Seat tube ID 27,2 mm
- Monococque carbon fork- weight 390 g
- Tapered headtube 1”1/8 top – 1”1/2 bottom
- Integrated Headset included
- Colors: SC1 GREY – SC2 RUBY RED
Super Corsa Ergal
ALUMINIUM ERGAL “ROAD CLASSIC” FRAME, MADE IN ITALY
手工經典版鋁合金跑車
- HANDMADE ERGAL aluminium frame
- Frame weight 1.600 g
- Bottom bracket BSA threaded
- Internal cable routing for brake
- External cable routing for shifting device
- Seat tube ID 27,2mm
- Carbon/alloy fork weight 500 g
- Tapered headtube 1”1/8 USD top – 1”1/8 bottom
- Integrated Headset included
- Size: XS / S / M / L / XL / XXL
- Colors: BLUE LB2 yellow decals/BLUE LB1 white decals/BLACK LN1 white decals/RED LR1 white
decals/RED LR2 yellow decals

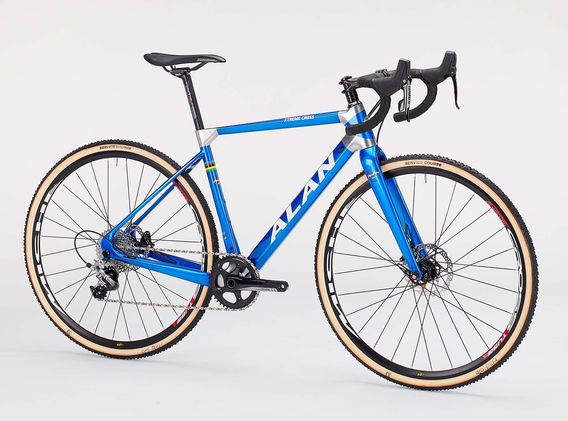

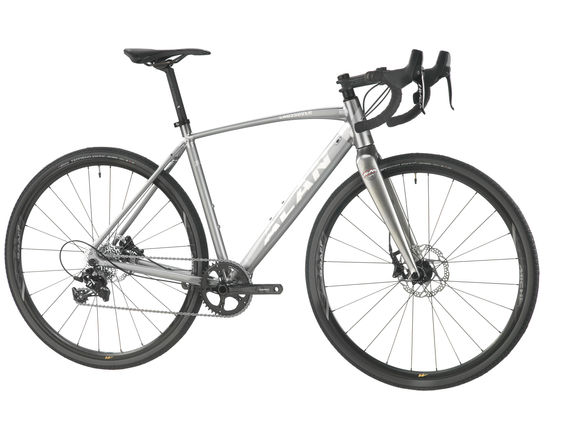

Cross/Gravel
越野公路車/《Gravel Bike》=ROAD跑車+MTB登山車
提供各種客製化的選擇
Cyclocross is our speciality.
Since the 70s we have built specific cyclocross frames used by great champions that achieved over than 20 world champion titles. Frames with unique characteristics of comfort and resistance, suitable for the most extreme and stressed conditions, for the maximum of performance on all surfaces.
The gravel models are built with the same technologies and materials of the cross models, merging comfort and race performance for rides in any type of road or hardpack trail surface.
They also features “gravel” specifics with geometry for long distances, disc brakes, front/rear thru axles drop outs,extra tire clearence for wide 42c tires.
